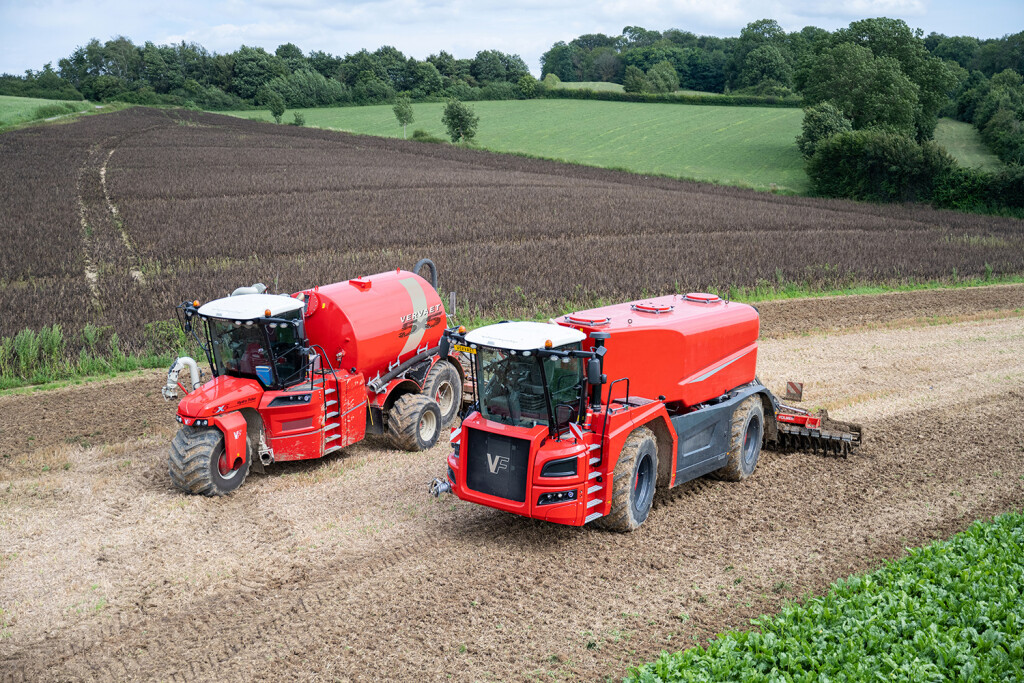

Quad 550
The best just got better
The Vervaet Quad is built for contractors who make no compromises. High capacity, outstanding manoeuvrability and the widest choice of tyres in its class. Steep slopes, wet soil or long working days: the Quad keeps going.
Continuously variable VSG drive, a suspended Claas X11 cab with a clear view of the injector, and intuitive controls. Four driven wheels deliver maximum traction, optimal weight distribution and minimal ground pressure.
Vervaet DNA
Innovative, reliable technology that is never more complicated than it needs to be. Quick for every driver to master, and simple and cost-efficient for every mechanic to maintain.
VSG Drive
Continuously variable and mechanical-hydrostatic, designed and built by Vervaet in-house.
Permanent four-wheel drive
Diff locks on both axles plus a central diff lock.
Three-point linkage
Category 3 and 4, with 10,000 kg lifting capacity.
Widest choice of tyres
A wide range of Michelin, BKT and Mitas tyres, from R32 to R42.
550 hp. Torque where it counts.
The Quad is powered by a 13.5-litre six-cylinder Volvo Penta engine delivering 550 hp (405 kW). Its maximum torque of 2,650 Nm is available from just 1,200 rpm. Driving at low engine speed is therefore the norm, and that keeps fuel consumption low.
Cooling up front
Developed together with Volvo Penta and designed for full load, even at ambient temperatures above 45°C. Because the cooler sits at the front, it is unaffected by dust and crop residue.
Serviced worldwide
The Volvo Penta engine is homologated worldwide and can be serviced anywhere in the world.
Well-engineered driveline
The VSG Drive is designed and built by Vervaet in-house: continuously variable, mechanical-hydrostatic and made for high torque. Each axle has its own gearbox. This gives the Quad the best torque in the 5 to 15 km/h working range.
Always four-wheel drive
Permanent four-wheel drive with no wind-up between front and rear axle.
Diff locks on both axles plus a central diff lock
So the Quad works its way through even the wettest and toughest spots.
Manoeuvrable right up to the headland
Compact in build and smart in steering. With integrated four-wheel steering, the Quad turns within a circle of 8.03 metres: quick turns on the headland, fewer wheel tracks and more time for the real work.
Four-wheel steering
Integrated steering of front and rear axle for maximum manoeuvrability.
Crab steering
Front and rear wheels each run in their own track, spreading the load over a wider area.
Soil-friendly
Optimal weight distribution keeps ground pressure to a minimum, even with a full tank.
Everything within easy reach
Good access to all vital components was a starting point of the design. Daily maintenance is done in no time, and you are quickly back at work.
Cooler up front
Always fresh air and ample cooling capacity, even in high temperatures. Less sensitive to dust and crop residue.
Open engine compartment
Engine and components are easy to reach for inspection and maintenance.
Tanks and air filter
Fuel and AdBlue tanks and the air filter are easily accessible.
Filled fast, injected without blockages
Fast filling, accurate dosing and no time lost to blockages. Choose the pump and cutter that suit your work, both matched to the Quad’s 21 m³ tank.
Choice of pump
Börger pump up to 13,500 l/min or Vogelsang pump with 9,000 l/min. Maximum 6 bar on the pressure side.
Vervaet system
Börger pump with the Vervaet pre-filter, which protects the slurry pump.
Vogelsang RotaCut with Turbo filler
Shorter filling times. The RotaCut with stone trap cuts fibres and catches foreign objects before the pump.
Filling, injecting and recirculating all run through one compact pipe system.
Fast filling, strong lifting
One universal suction arm
Thanks to a smart slewing ring design, a single suction arm works with all loading systems. The arm moves automatically into working or transport position, does not block your view on the road and is RDW and TÜV approved: road-legal throughout Europe.
Category 3 and 4 linkage
Three-point linkage with 10,000 kg lifting capacity, so you can attach any application unit.
Claas X11 cab
Overview and comfort for long days. Joystick and terminal are integrated in the armrest: the entire machine is within easy reach.
Front axle suspension
Smooth ride in the field and on the road.
Cab suspension
Hydropneumatic suspension for less vibration.
Air-suspended seat
Relaxed working, even on long days.
Clear view of the injector
Just look over your shoulder while injecting: thanks to the sloping tank, you have a clear view of the injector. Typically Vervaet.
The widest choice of tyres
Grassland, arable land, maize or row crops: there is a suitable tyre for every crop and every application. From wide flotation tyres to narrow row-crop wheels, everything fits. And in almost every configuration, the Quad stays within a 3.0 m transport width.
Michelin
FloatXBib 1000/55 R32
CerexBib 1000/55 R32
CerexBib 2 900/60 R42
BKT
Agrimax ProHarvest 1020/55 R38
Agrimax RT 600 1250/50 R32
Mitas
HC 3000 R 1000/65 R32
More capacity, fewer trips
The Quad XL combines the Quad with a trailed tank for a total capacity of 40 m³. Less driving back and forth, more hectares per day, with the same manoeuvrability and the same comfort.
Solid manure too
With the solid manure body, the Quad becomes a universal spreader. The machine automatically controls the speed for the set application rate per hectare, also based on task maps.
Vervaet Connect: always connected
With Vervaet Connect on board, you have real-time insight into your machine, record your application rate accurately, and our service team can look along remotely.
Real-time insight
Position, performance, application rate and consumption, live on your screen.
NIR sensor
Measures the composition of the slurry and records the NPK application precisely.
Integrations
Data goes straight to the systems you already use.
Remote service
Our mechanics look along with you and help you get going again quickly.
Optimal service network
Invest in a Quad and you get a team that keeps your machine working. We know how important it is to minimise downtime and get you back on the road quickly.
By phone
Thanks to the standard diagnostic system, we solve many faults directly over the phone.
On site
Our own professionally trained mechanics who know every part of your machine.
Remotely
Via Vervaet Connect, we look along live with your machine.
Forward-looking family business, since 1957
By contractors, for contractors: that is the best way to describe the history and the future of Frans Vervaet B.V. from Biervliet. With a passion for the trade, an open ear for customer wishes and a pioneering spirit, wherever possible.
Specifications
| Engine | Volvo Penta 13.5 l, 405 kW / 550 hp |
| Maximum torque | 2,650 Nm at 1,200 rpm |
| Transmission | VSG Drive (continuously variable), permanent four-wheel drive |
| Hydraulics | Bosch Rexroth |
| Slurry pump | Börger up to 13,500 l/min or Vogelsang 9,000 l/min |
| Slurry tank capacity | 21,000 l (Quad XL: 40,000 l total, with trailed tank) |
| Speed transport / field | 40 km/h / 32 km/h |
| Fuel tank | 850 l |
| Linkage | Three-point, category 3 and 4, 10,000 kg |
| Inner turning circle | 8.03 m |
| Transport width | 3.0 m (with almost every tyre size) |
Images may show optional equipment. Specifications are subject to change without prior notice.
